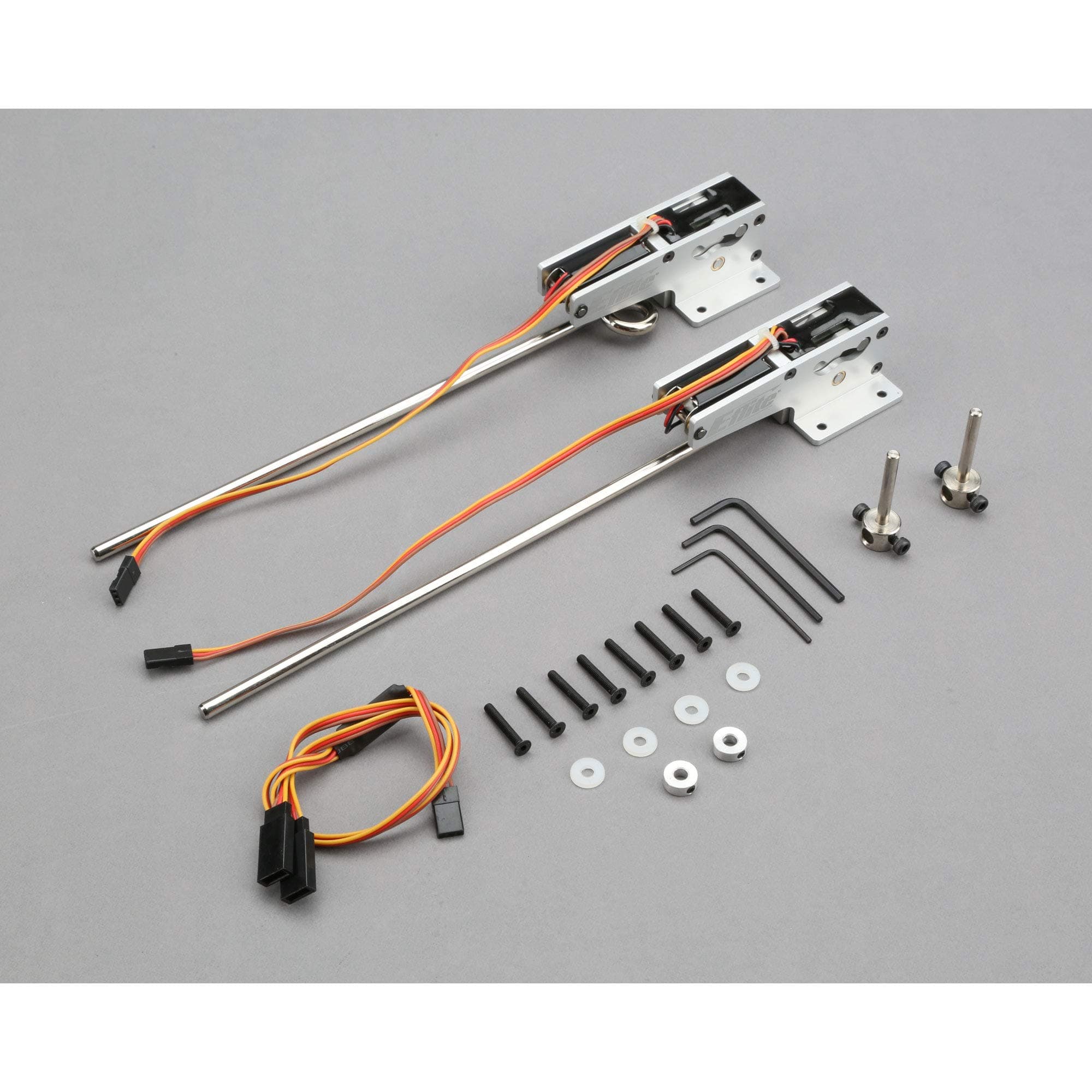

E-flite 60-120 85deg Strut Ready Main Elect Retract

Description

This is an optional E-flite 60-120 Size 85° Strut Ready Main Electric Retract System and is intended for use with the Hangar 9 P-47D-1 Thunderbolt 60 ARF. You don’t have to be a master modeler to add the realism of functioning retracts to your airplane. E-flite’s completely self-contained retract system doesn’t require an air tank, complex linkages or even an extra servo. Simply bolt it into place and plug it into the receiver. NOTE:Must use with E-flite 60-120 P-47 Main Strut Set (EFLG510P47). Specifications: Current Draw:Idle: 5mA Operating: 900mA (maximum)Operating Voltage Range: 4.8–7.4V Recommended Aircraft Weight: 8.0–15.0 lb (3.63–6.80 kg) Unit Weight:130g (4.6 oz) each Pulse width:Trigger Points Down: 1.331ms Trigger Points Up:1.690msOperation FM and DSM:FM: 22ms frame rate, 5V signal DSM: 20ms frame rate, 3.3V signalSequence Time:@ 4.8V: 1.25sec @ 6.0V:1sec @ 7.4V: 0.8sec
